DLE 20 bensa 2-tahtinen moottori.

Teho 2,5hp @ 9000rpm



Käyttöohjeen löydät tästä

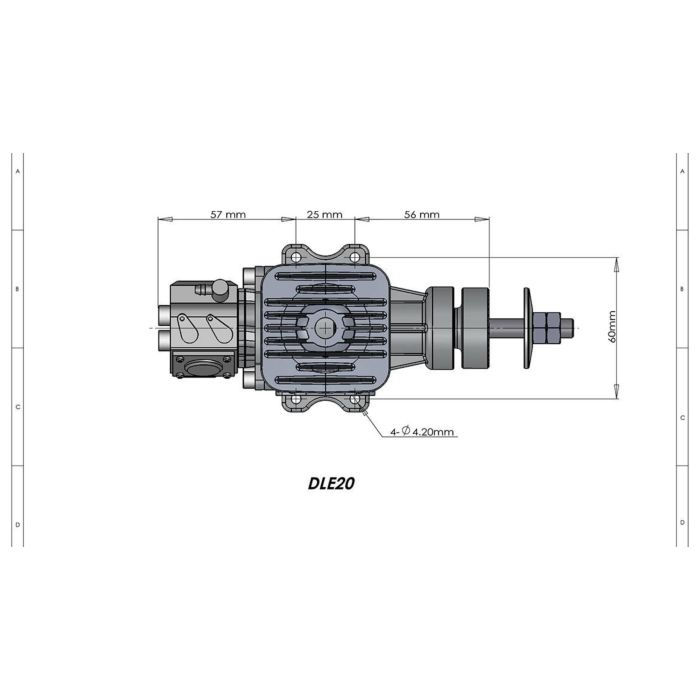

Mittakuvan löydät tästä



DLE 20 moottori+ sytytys yksikkö ja Pitts style äänenvaimennin

Tuotenumero: DLE001
255,00 €Hinta
  • Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.

    A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE-20 an attractive alternative to glow...and a solid buy for value and performance.

    Specifications:

    Stock Number: DLEG0020
    Displacement: 20 cc (1.22 cu in)
    Bore: 1.3 in (32 mm)
    Stroke: 1.0 in (25 mm)
    Weight: 28.9 oz (820 g)
    RPM Range: 1,750-9,000
    Output: 2.5 hp @ 9,000 rpm
    Requires: Gasoline, 2-cycle oil, ignition battery & propeller
    Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
    Suggested Propellers: 14x10, 15x8, 16x6, 16x8, 17x6
    Suggested Break-in Prop: n/a

    Technical Data:
    Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (Voltage regulator required with LiPo or LiFe pack.)
    Compression Ratio: 10.5:1
    Gasoline/Oil Mix: 30:1
    Replacement Spark Plug: DLEG2126
    Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)


    Recommended Products:
    16x8 Beechwood Propeller
    16x6 Beechwood Propeller
    17x6 Beechwood Propeller
